高压并联电容器用途：
高压并联电容器主要应用于50Hz或60Hz交流电力系统以改善功率因数。产品性能符合GB3983.2-89《高电压并联电容器》及国际标准IEC60871-1。
高压并联电容器使用条件：
1、海拔高度不超过1000m，环境空气温度-40℃~+40℃
2、安装场所无剧烈的机械振动、无有害气体及蒸汽、无导电性及爆炸性尘埃
3、连续运行电压1.0UN，长期过电压最高值不超过1.1UN，允许在1.1Un下长期运行，每24h内并可以在1.15Un下最多运行30min。
4、稳态过电流(包括谐波电流)不超过1.43IN
5、最大允许容量不超过1.35QN
|

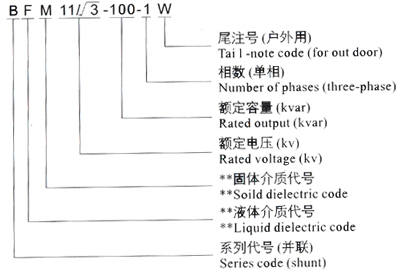

高压并联电容器型号说明 MODEL MEANINGS
|
|
|
|
液体介质代号
W-浸渍剂为烷基苯
A-浸渍剂为二芳基乙烷
A-浸渍剂为苄基甲苯 |
Liquid dielectric code
W-Impregnant is AB
F-Impregnant is PXE
A-Impregnant is benzy lbenzoic |
|
固体介质代号
F-聚丙焟薄烯薄和电容器纸复合介质
M-全薄膜介质s
F-聚丙烯薄和电容器纸复合介质
M-全薄膜介质 |
Solid dielectric code:
F-Composite medium of polypropy lenefilm and capacitor paper
M-complete film medium |
|
|
高压并联电容器主要技术参数 MAIN TECHNICAL CHARACTERISITICS
|
|
产品
code |
产品型号
Rated voltage(kv) |
额定电压
Rated voltage |
额定容量
Rated capacity (Kvar) |
额定电容
Rated capacity |
相数
Number of phases |
|
1 |
BAM0.75-18-1W |
0.75 |
18 |
101.9 |
1(3) |
|
2 |
BAM0.75-20-1W |
0.75 |
20 |
113.2 |
1(3) |
|
3 |
BAM0.75-25-1W |
0.75 |
25 |
141.5 |
1(3) |
|
4 |
BAM0.75-30-1W |
0.75 |
30 |
169.8 |
1(3) |
|
5 |
BAM1.05-30-1W |
1.05 |
30 |
86.6 |
1(3) |
|
6 |
BAM1.05-50-1W |
1.05 |
50 |
144.1 |
1(3) |
|
7 |
BAM1.05-60-1W |
1.05 |
60 |
173.2 |
1(3) |
|
8 |
BAM1.05-100-1W |
1.05 |
100 |
288.7 |
1(3) |
|
9 |
BAM3.15-200-1W |
3.15 |
100 |
32.1 |
1(3) |
|
10 |
BAM3.15-200-1W |
3.15 |
200 |
64.2 |
1(3) |
|
11 |
BAM6.3-12-1W |
6.3 |
12 |
0.95 |
1(3) |
|
12 |
BAM6.3-14-1W |
6.3 |
14 |
1.1 |
1(3) |
|
13 |
BAM6.3-16-1W |
6.3 |
16 |
1.2 |
1(3) |
|
14 |
BAM6.3-1-1W |
6.3 |
18 |
1.4 |
1(3) |
|
15 |
BAM6.3-30-1W |
6.3 |
30 |
2.4 |
1(3) |
|
16 |
BAM6.3-40-1W |
6.3 |
40 |
3.2 |
1(3) |
|
17 |
BAM6.3-50-1W |
6.3 |
50 |
4.0 |
1(3) |
|
18 |
BAM6.3-80-1W |
6.3 |
80 |
6.4 |
1(3) |
|
19 |
BAM6.3-100-1W |
6.3 |
100 |
8.0 |
1(3) |
|
20 |
BAM6.3-150-1W |
6.3 |
150 |
12.0 |
1(3) |
|
21 |
BAM10.5-50-1W |
10.5 |
50 |
1.4 |
1(3) |
|
22 |
BAM10.5-80-1W |
10.5 |
80 |
2.3 |
1(3) |
|
23 |
BAM10.5-100-1W |
10.5 |
100 |
2.9 |
1(3) |
|
24 |
BAM10.5-150-1W |
10.5 |
150 |
4.3 |
1(3) |
|
25 |
BAM10.5-200-1W |
10.5 |
200 |
5.8 |
1(3) |
|
26 |
BAM10.5-337-1W |
10.5 |
334 |
9.6 |
1(3) |
|
27 |
BFM11/3-14-1W |
11/3 |
12 |
0.95 |
1(3) |
|
28 |
BFM11/3-14-1W |
11/3 |
14 |
1.1 |
1(3) |
|
29 |
BFM11/3-16-W |
11/3 |
16 |
1.3 |
1(3) |
|
30 |
BFM11/3-18-1W |
11/3 |
18 |
1.4 |
1(3) |
|
31 |
BFM11/3-30-1W |
11/3 |
30 |
2.4 |
1(3) |
|
32 |
BFM11/3-40-1W |
11/3 |
40 |
3.2 |
1(3) |
|
33 |
BFM11/3-50-1W |
11/3 |
50 |
3.95 |
1(3) |
|
34 |
BFM11/3-80-1W |
11/3 |
80 |
6.3 |
1(3) |
|
35 |
BFM11/3-100-1W |
11/3 |
100 |
7.9 |
1(3) |
|
36 |
BFM11/3-150-1W |
11/3 |
150 |
11.8 |
1(3) |
|
37 |
BFM11/3-200-1W |
11/3 |
200 |
15.3 |
1(3) |
|
38 |
BFM11/3-334-1W |
11/3 |
334 |
26.4 |
1(3) |
|
39 |
BFM11-16-1W |
11 |
16 |
0.42 |
1(3) |
|
40 |
BFM11-18-1W |
11 |
18 |
0.47 |
1(3) |
|
41 |
BFM11-30-1W |
11 |
30 |
0.79 |
1(3) |
|
42 |
BFM11-40-1W |
11 |
40 |
1.1 |
1(3) |
|
43 |
BFM11-50-1W |
11 |
50 |
1.3 |
1(3) |
|
44 |
BFM11-100-1W |
11 |
100 |
2.6 |
1(3) |
|
45 |
BFM11-200-1W |
11 |
200 |
5.3 |
1(3) |
|
46 |
BFM11-334-1W |
11 |
334 |
8.8 |
1(3) |
|
47 |
BFM12-30-1W |
12 |
30 |
0.66 |
1(3) |
|
48 |
BFM12-40-1W |
12 |
40 |
0.88 |
1(3) |
|
49 |
BFM12-50-1W |
12 |
50 |
1.1 |
1(3) |
|
50 |
BFM12-80-1W |
12 |
80 |
1.8 |
1(3) |
|
51 |
BFM12-100-1W |
12 |
100 |
2.2 |
1(3) |
|
52 |
BFM12-150-1W |
12 |
150 |
3.3 |
1(3) |
|
53 |
BFM12-200-1W |
12 |
200 |
4.4 |
1(3) |
|
54 |
BFM12-300-1W |
12 |
300 |
6.6 |
1(3) |
|
55 |
BFM12-334-1W |
12 |
334 |
7.4 |
1(3) |
|
注：尾号“1”表示单相，"3"表示三相，带"G"表示在高原地区使用；本公司可根据客户的需求定做不同规格尺寸的产品。 | |
